Home › Hyundai › 2017 › Santa Fe SE, AWD › Repair and Diagnosis › Engine Mechanical › Engine Lubrication System › Oil Pan › Components And Components Location › Components

Components And Components Location: Components

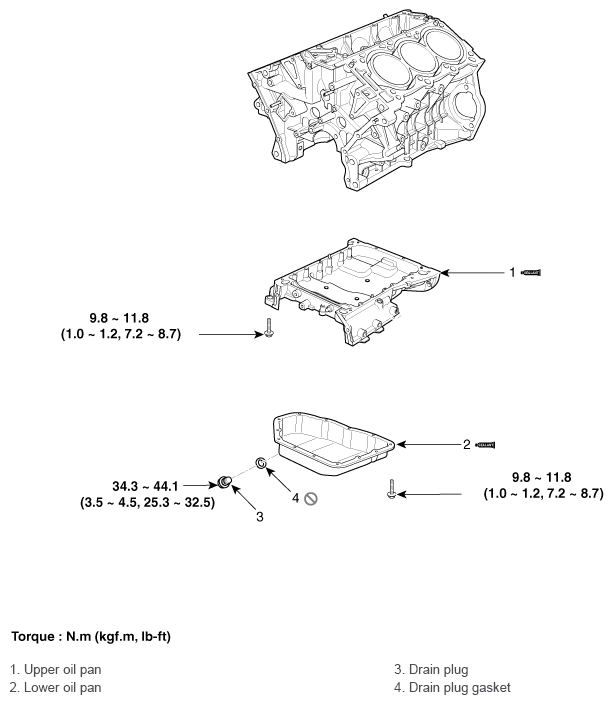

Fig 1: Oil Pan Components Location With Torque Specifications
G12033720Courtesy of HYUNDAI MOTOR AMERICA
