Components And Components Location: Components

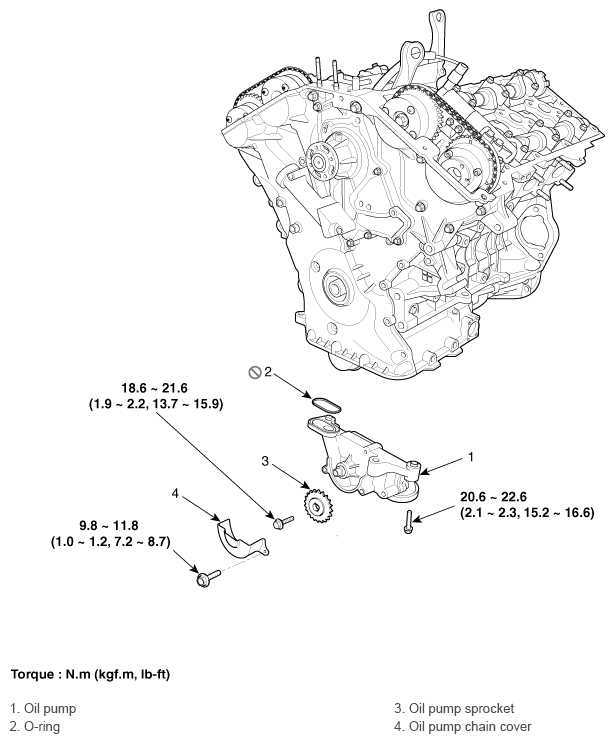

Fig 1: Oil Pump Components With Torque Specifications
G12033727Courtesy of HYUNDAI MOTOR AMERICA
