Components And Components Location: Components

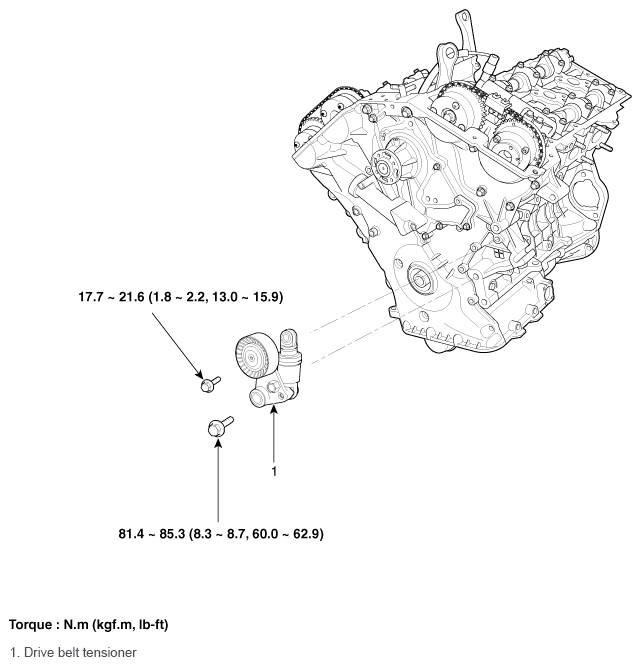

Fig 1: Drive Belt Tensioner Components With Torque Specifications
G12032712Courtesy of HYUNDAI MOTOR AMERICA
