Circuit Diagram
Circuit Diagram

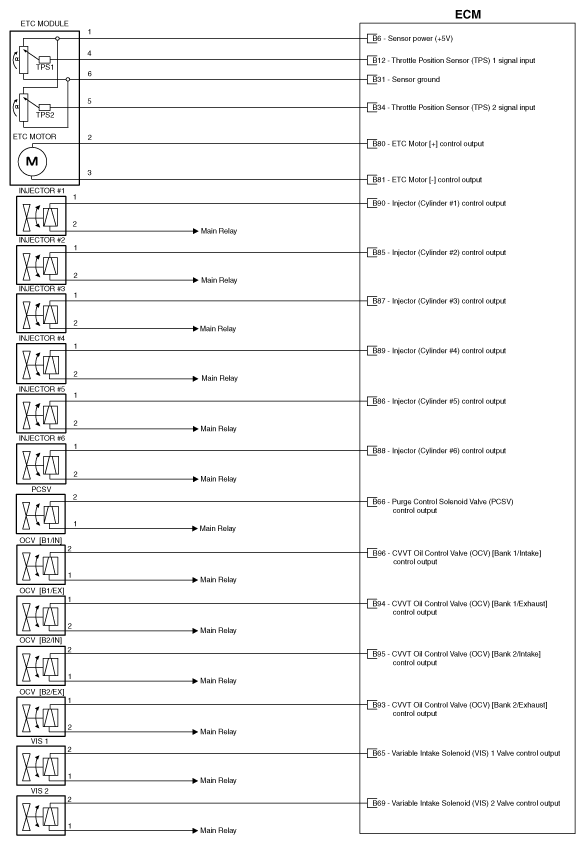

Fig 1: Engine Control Module Diagram (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

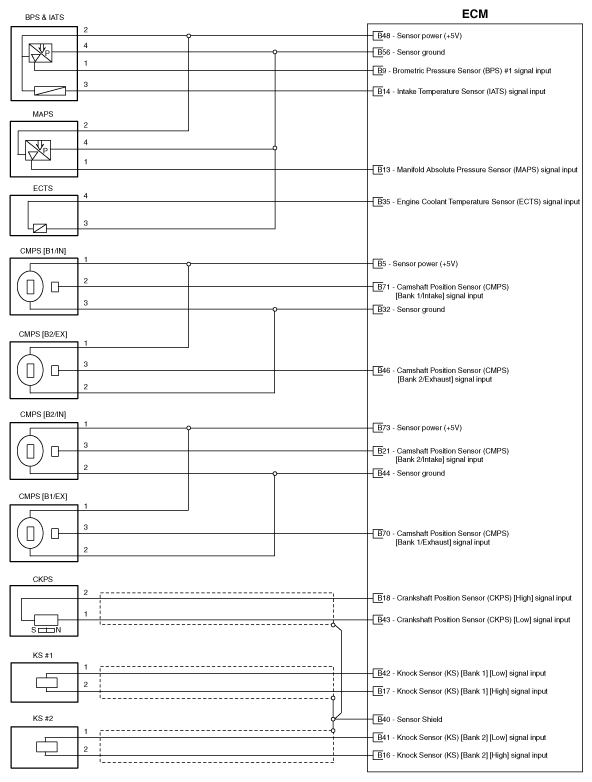

Fig 2: Engine Control Module Diagram (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

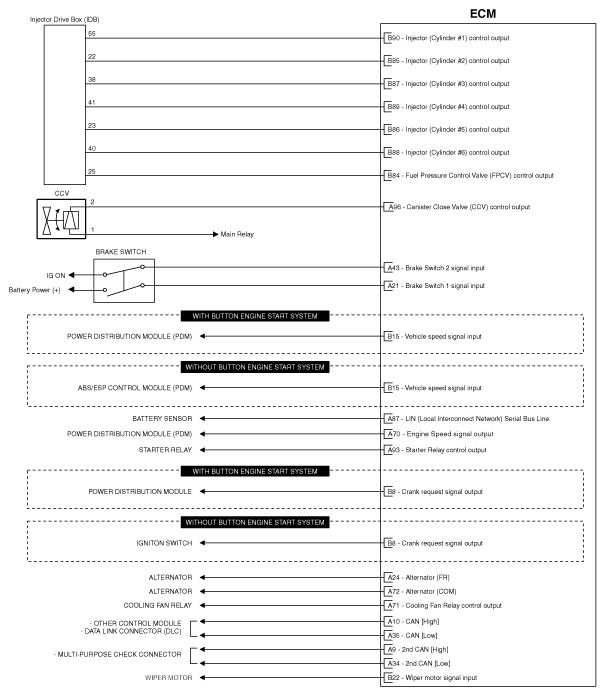

Fig 3: Engine Control Module Diagram (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

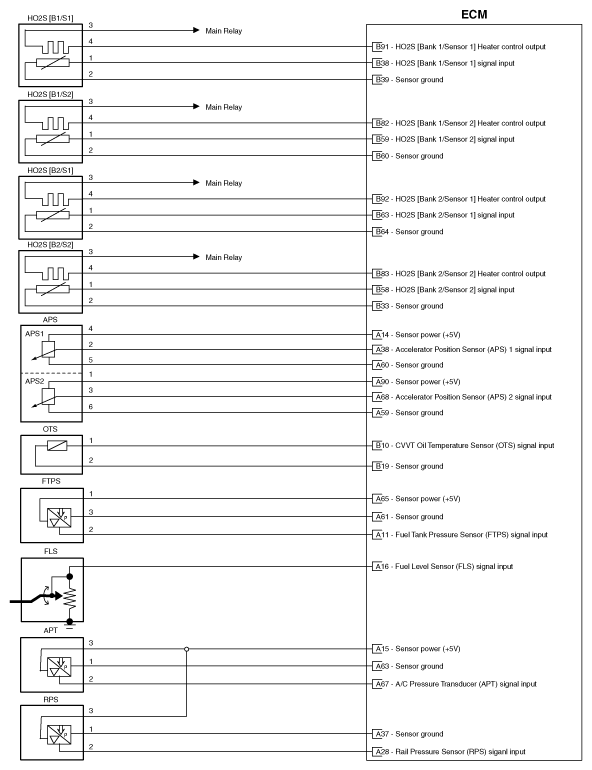

Fig 4: Engine Control Module Diagram (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

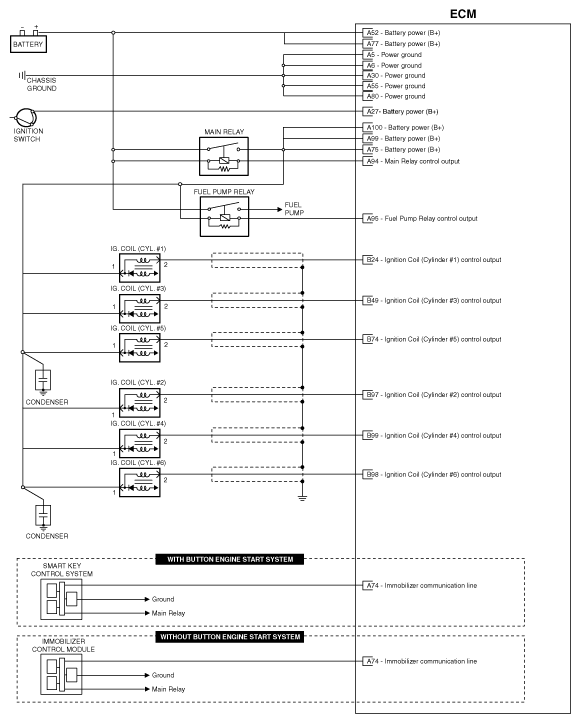

Fig 5: Engine Control Module Diagram (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
