Automatic Transaxle Hydraulic System
›
Hydraulic System
›
Components And Components Location
›
Component Location
Component Location

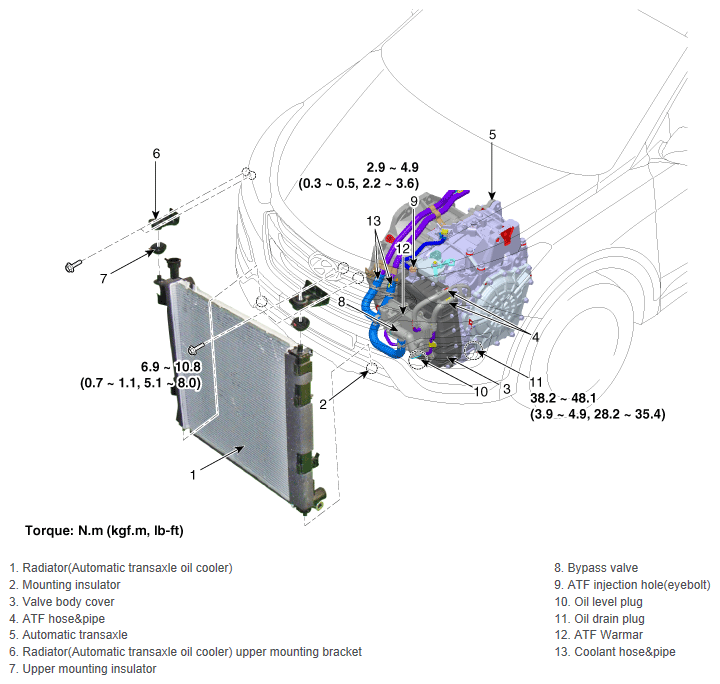

Fig 1: Hydraulic System Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

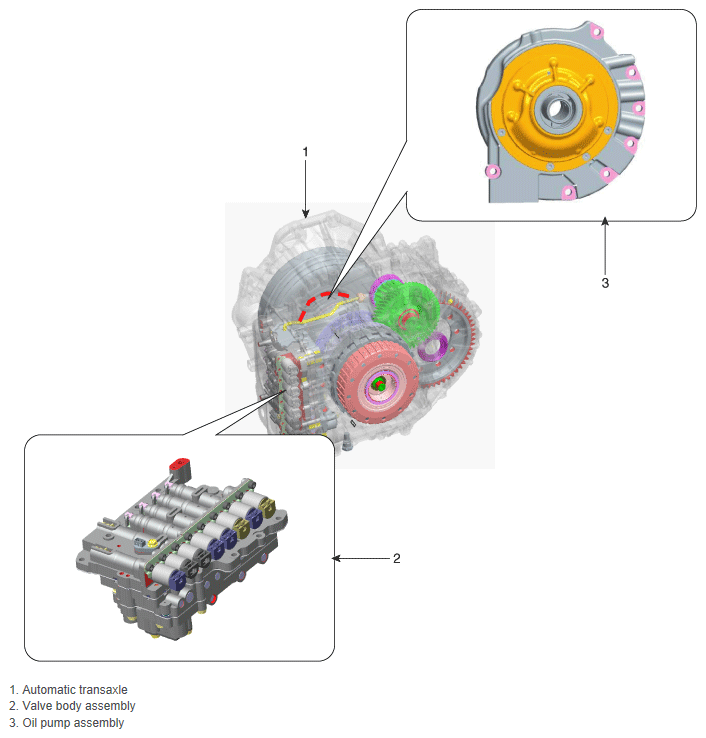

Fig 2: Hydraulic System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
