Component Location

Fig 1: Valve Body Components
G12034225Courtesy of HYUNDAI MOTOR AMERICA

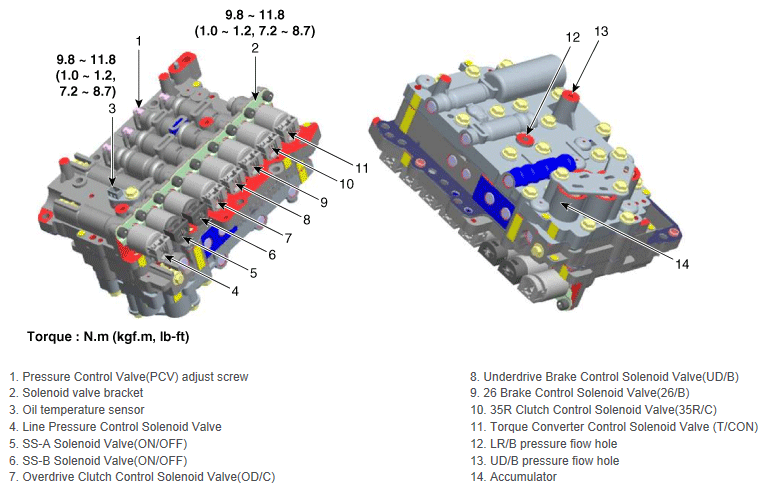

Fig 2: Valve Body Components With Torque Specifications
G12034226Courtesy of HYUNDAI MOTOR AMERICA
