Components And Components Location: Components

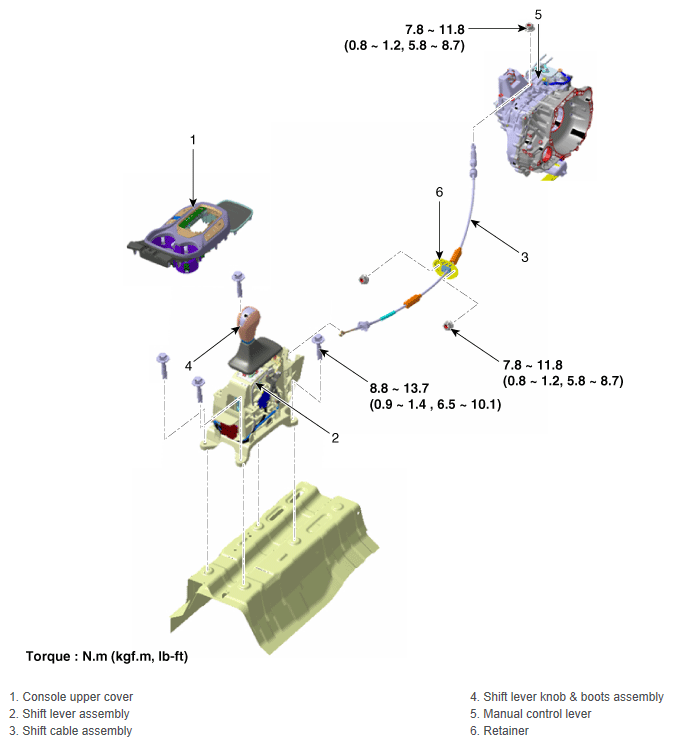

Fig 1: Shift Cable Components With Torque Specifications
G12034391Courtesy of HYUNDAI MOTOR AMERICA
