Components And Components Location: Components

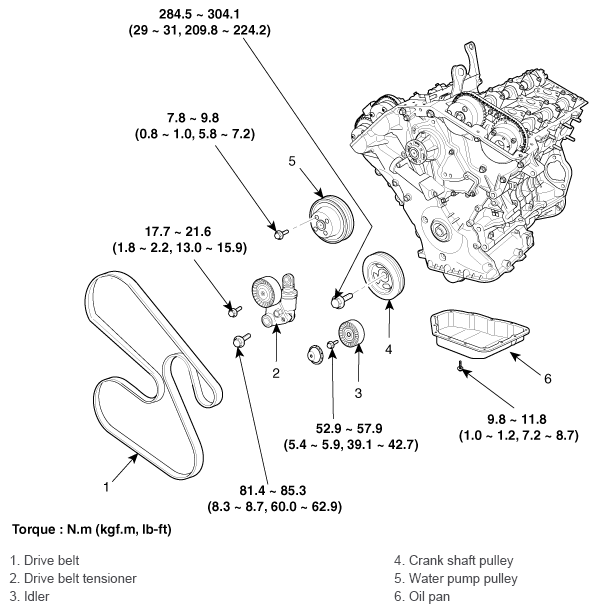

Fig 1: Timing System Components With Torque Specifications (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

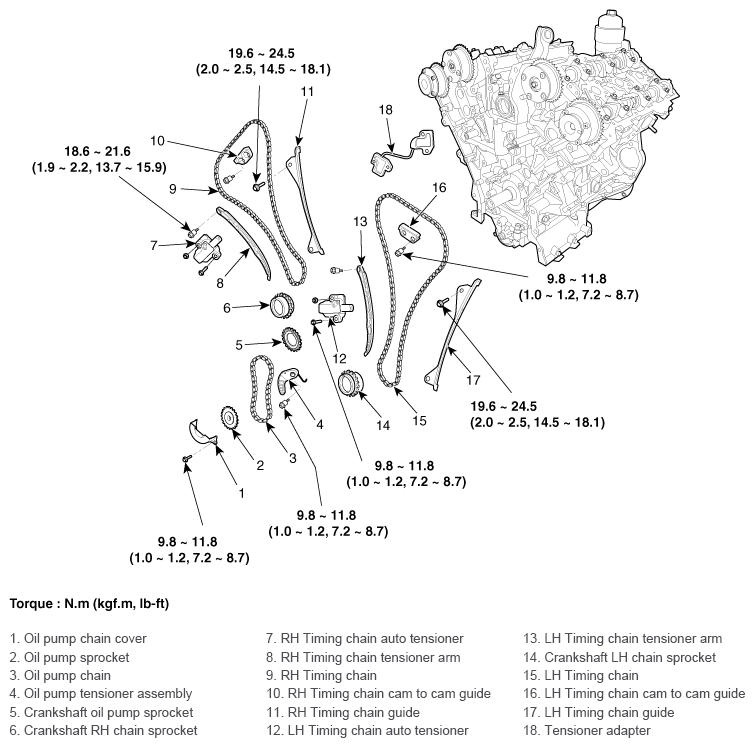

Fig 2: Timing System Components With Torque Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
