Home › Hyundai › 2017 › Santa Fe Sport 2.0T, AWD › Repair and Diagnosis › Body & Frame › Windows › Power Windows › Power Window Motor › Components and Components Location › Components

Components and Components Location: Components

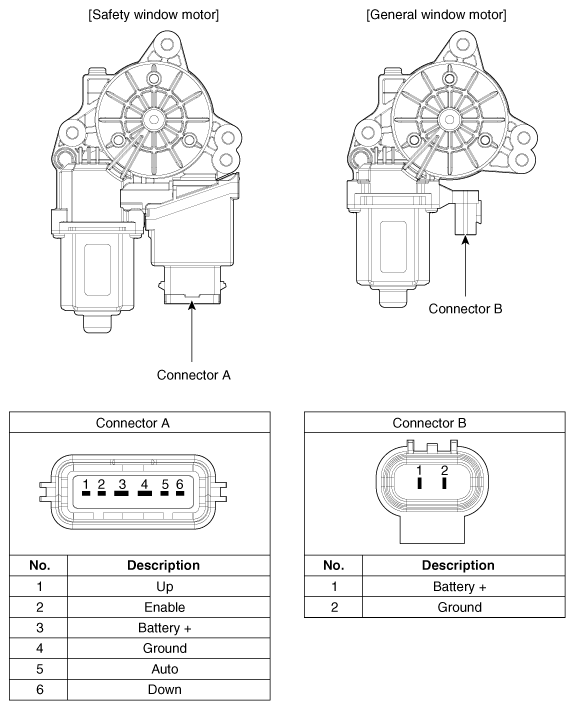

Fig 1: Power Window Motor Connectors
G12054715Courtesy of HYUNDAI MOTOR AMERICA
