Components and Components Location: Components

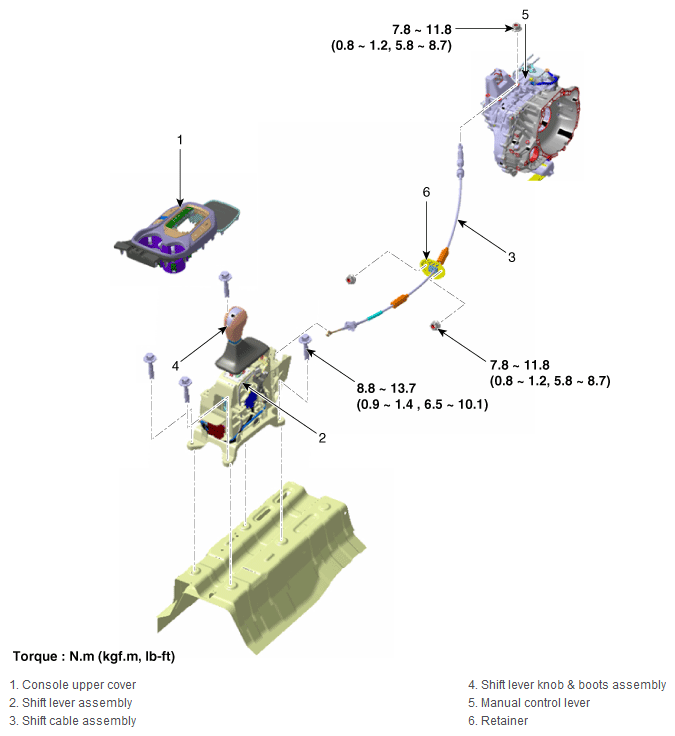

Fig 1: Shift Cable Components With Torque Specification
G12055824Courtesy of HYUNDAI MOTOR AMERICA
