Components and Components Location: Components

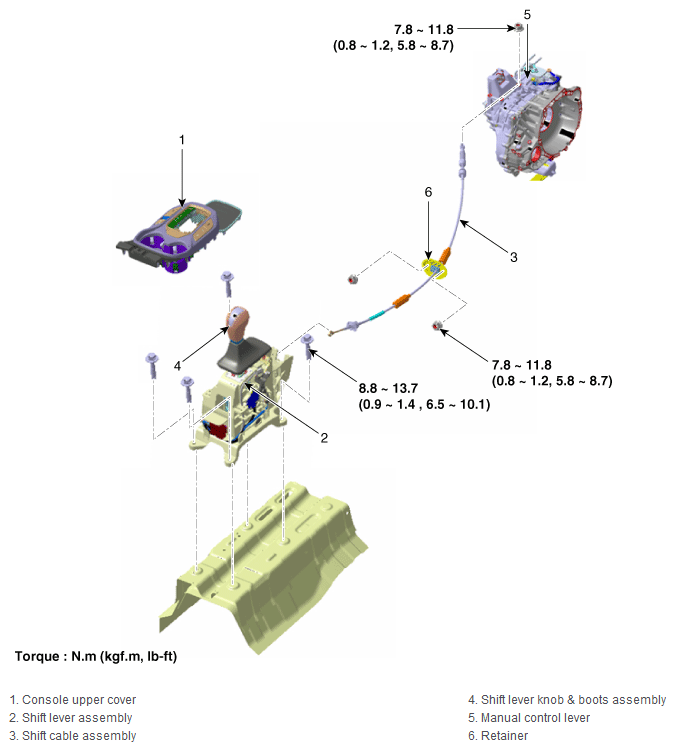

Fig 1: Shift Lever Components With Torque Specification
G12055820Courtesy of HYUNDAI MOTOR AMERICA
