Automatic Transaxle Control System - 2.0L
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

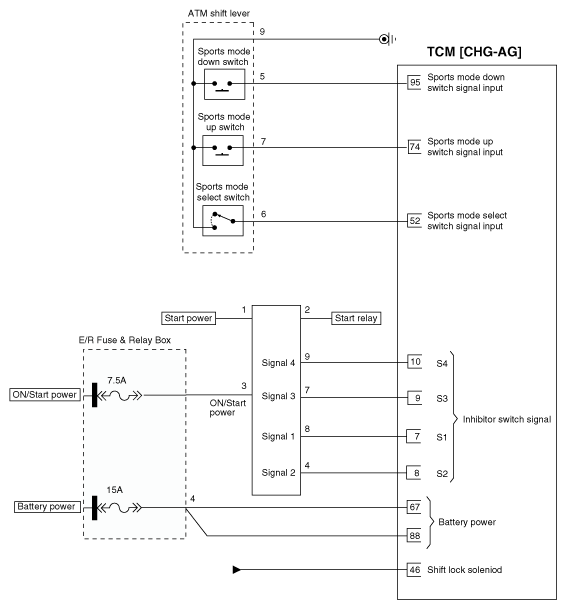

Fig 1: TCM Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

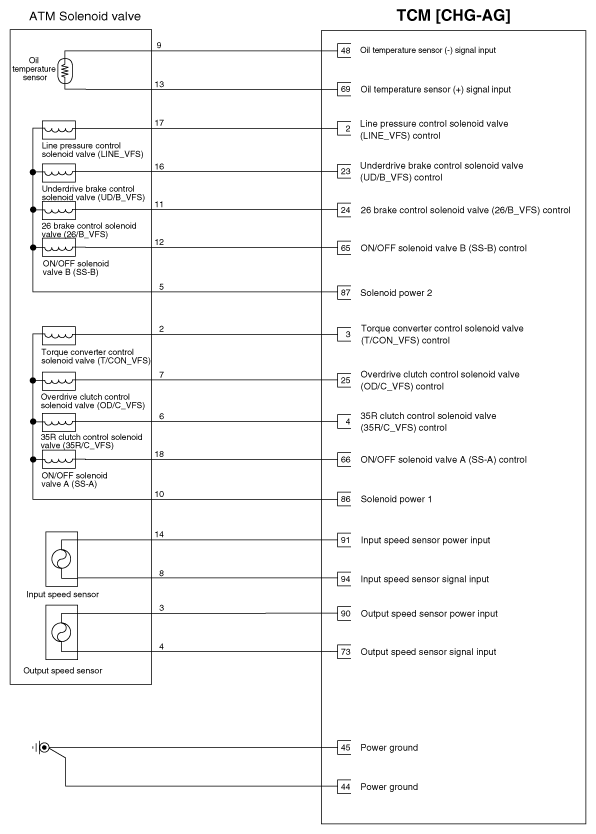

Fig 2: TCM Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
