Components And Components Location: Components

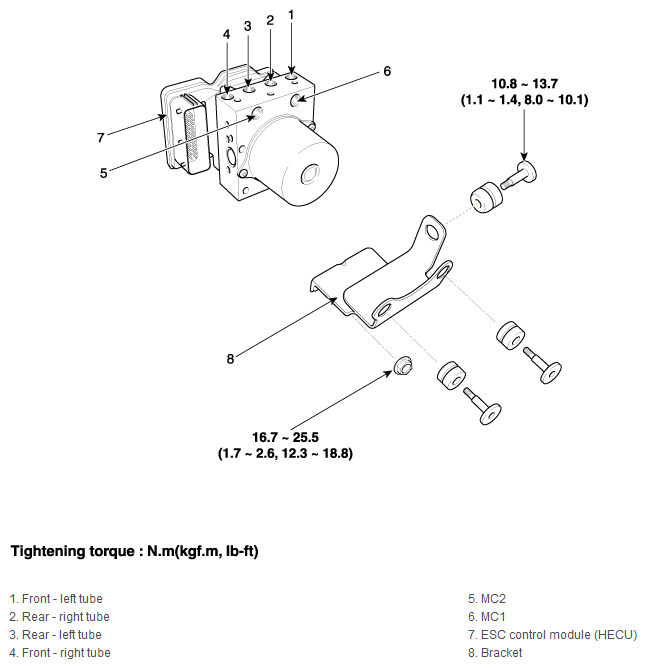

Fig 1: ESC Control Module Components With Torque Specification
G12056491Courtesy of HYUNDAI MOTOR AMERICA
