Components and Components Location: Components

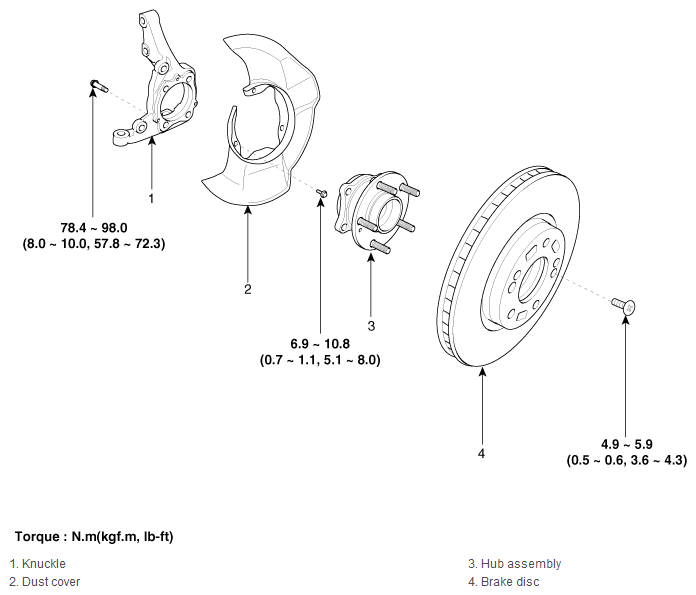

Fig 1: Exploded View Of Front Axle Assembly Components With Torque Specification
G12055900Courtesy of HYUNDAI MOTOR AMERICA
