Circuit Diagram
Circuit Diagram

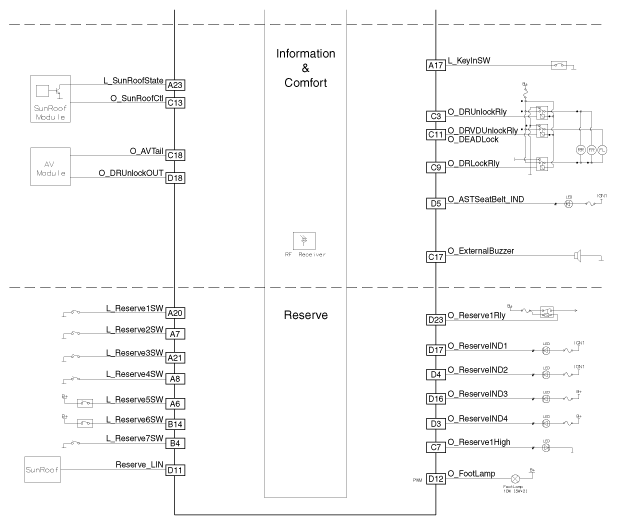

Fig 1: Body Control Module Circuit Diagram (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

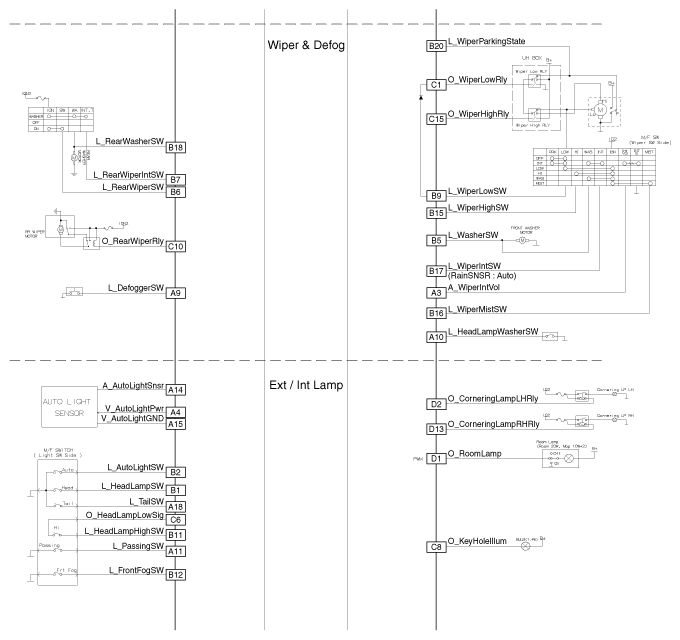

Fig 2: Body Control Module Circuit Diagram (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

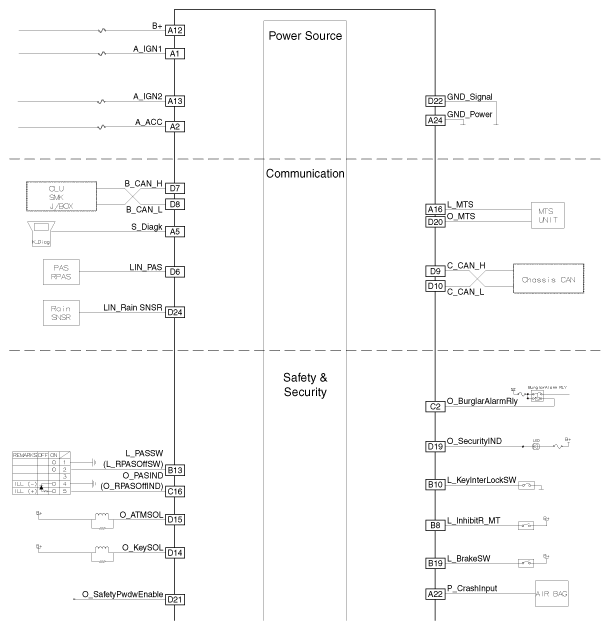

Fig 3: Body Control Module Circuit Diagram (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
