Components And Components Location: Components

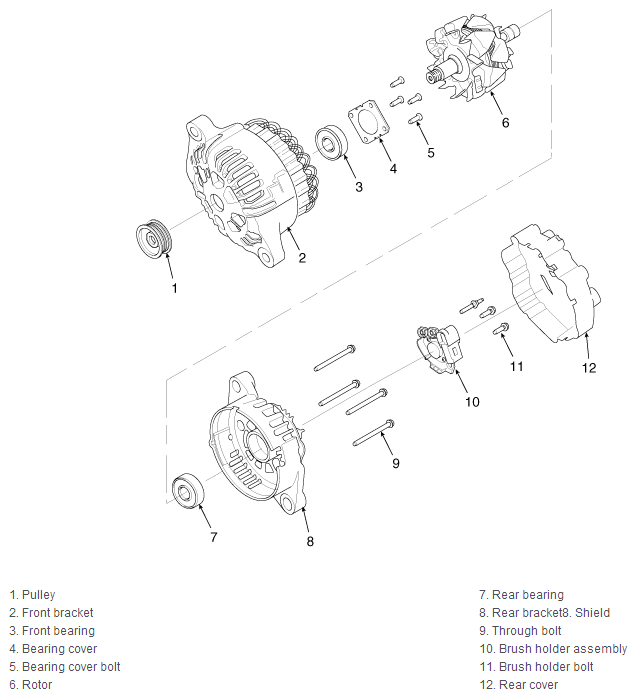

Fig 1: Exploded View Of Alternator Components
G12053704Courtesy of HYUNDAI MOTOR AMERICA
