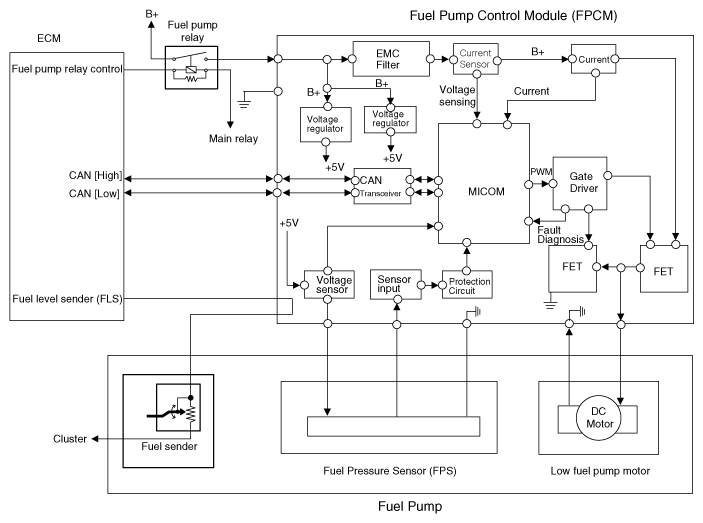

Home › Hyundai › 2017 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 2.4L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
