Components and Components Location: Components

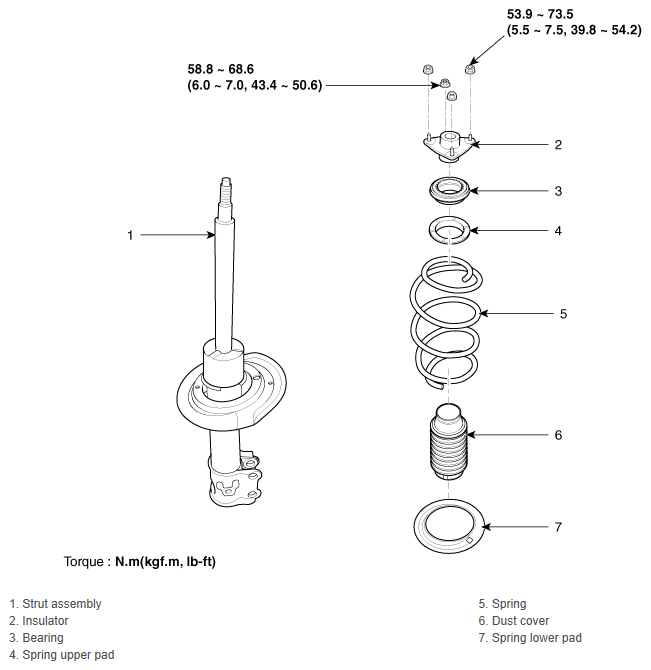

Fig 1: Front Strut Assembly Components With Torque Specification
G12056007Courtesy of HYUNDAI MOTOR AMERICA
