Components And Components Location: Components

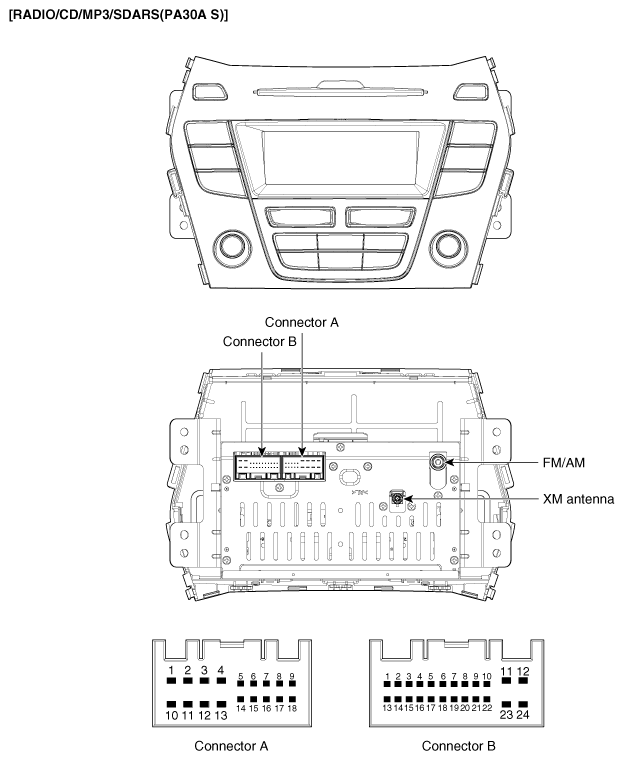

CONNECTOR PIN IDENTIFICATION
| No. | Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | CAN High |
| 2 | Front left speaker (+) | TMU Audio (+) (For USA) |
| 3 | Front right speaker (+) | - |
| 4 | Rear right speaker (+) | Steering wheel remote |
| 5 | - | - |
| 6 | - | USB D (+) |
| 7 | - | USB/iPod VDD |
| 8 | Illumination (+) | AUX R IN |
| 9 | Detent | AUX GND |
| 10 | Rear left speaker (-) | Mic (+) B/T |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | B+ |
| 13 | Rear right speaker (-) | CAN Low |
| 14 | - | TMU Audio (-) (For USA) |
| 15 | - | - |
| 16 | - | Speed |
| 17 | Illumination (-) | Remote GND |
| 18 | Remote antenna | USB D (-) |
| 19 | USB/iPod GND | |
| 20 | AUX DETECT | |
| 21 | AUX L IN | |
| 22 | Mic (-) B/T | |
| 23 | - | |
| 24 | Power GND |

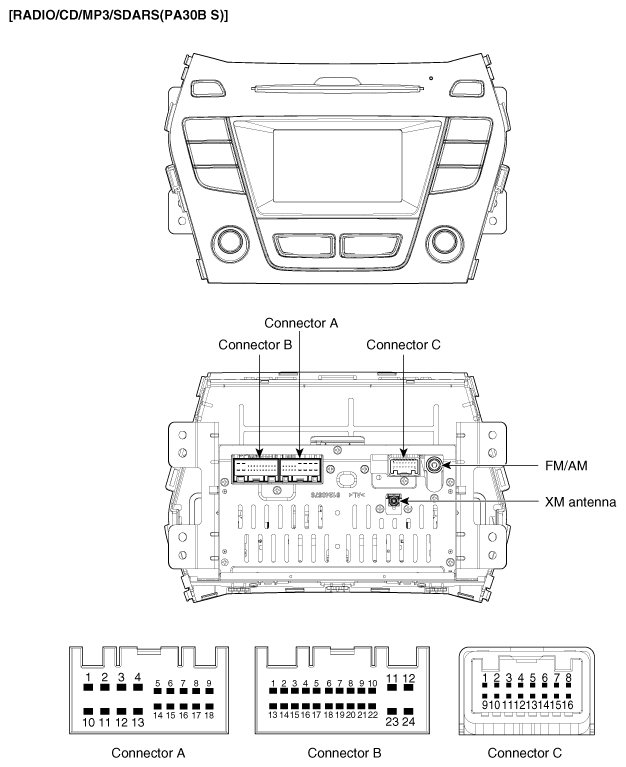

CONNECTOR PIN IDENTIFICATION
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | CAN High | - |
| 2 | Front left speaker (+) | TMU Audio (+) (For USA) | - |
| 3 | Front right speaker (+) | - | Camera ground |
| 4 | Rear right speaker (+) | Steering wheel remote | Camera video input |
| 5 | - | - | - |
| 6 | - | USB D (+) | - |
| 7 | - | USB/iPod VDD | - |
| 8 | Illumination (+) | AUX R IN | - |
| 9 | Detent | AUX GND | - |
| 10 | Rear left speaker (-) | Mic (+) B/T | Camera battery (+) |
| 11 | Front left speaker (-) | ACC | Power GND |
| 12 | Front right speaker (-) | B+ | R detector |
| 13 | Rear right speaker (-) | CAN Low | - |
| 14 | - | TMU Audio (-) (For USA) | - |
| 15 | - | - | - |
| 16 | - | Speed | - |
| 17 | Illumination (-) | Remote GND | |
| 18 | Remote antenna | USB D (-) | |
| 19 | USB/iPod GND | ||
| 20 | AUX DETECT | ||
| 21 | AUX L IN | ||
| 22 | Mic (-) B/T | ||
| 23 | - | ||
| 24 | Power GND |
