Circuit Diagram

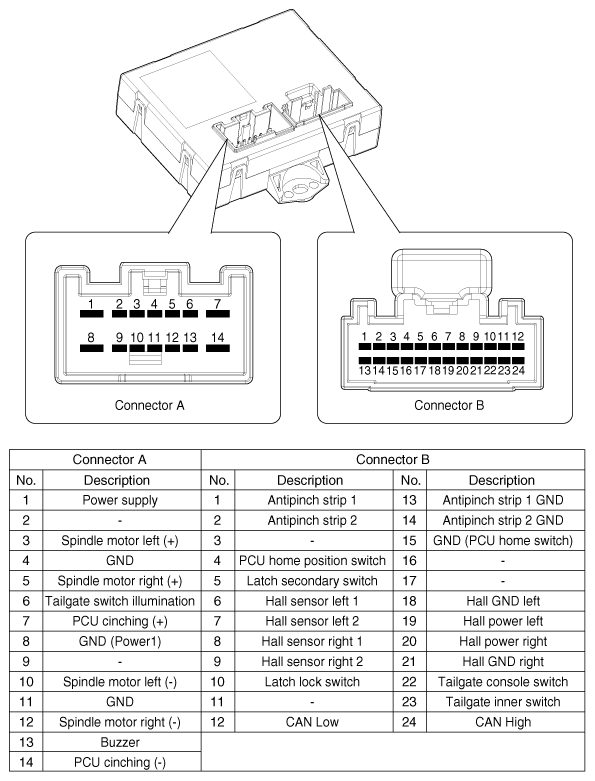

Fig 1: Power Liftgate Unit Connector Terminals Description Chart
G12036238Courtesy of HYUNDAI MOTOR AMERICA
