Components And Components Location: Components

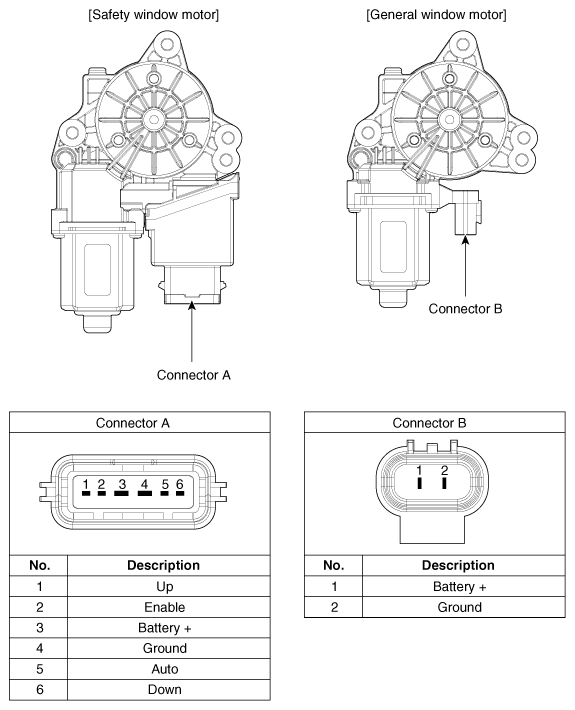

Fig 1: Power Window Motor Components & Connector Terminal Descriptions Chart
G12036179Courtesy of HYUNDAI MOTOR AMERICA
