Assist Power Window Switch

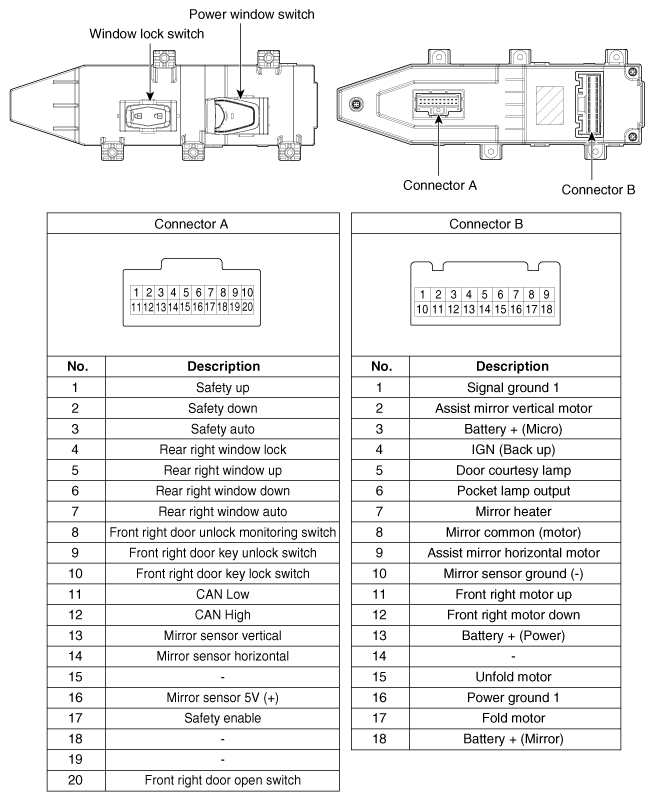

Fig 1: Assist Power Window Switch Connector Terminal Descriptions Chart
G12036187Courtesy of HYUNDAI MOTOR AMERICA
