Driver Power Window Switch

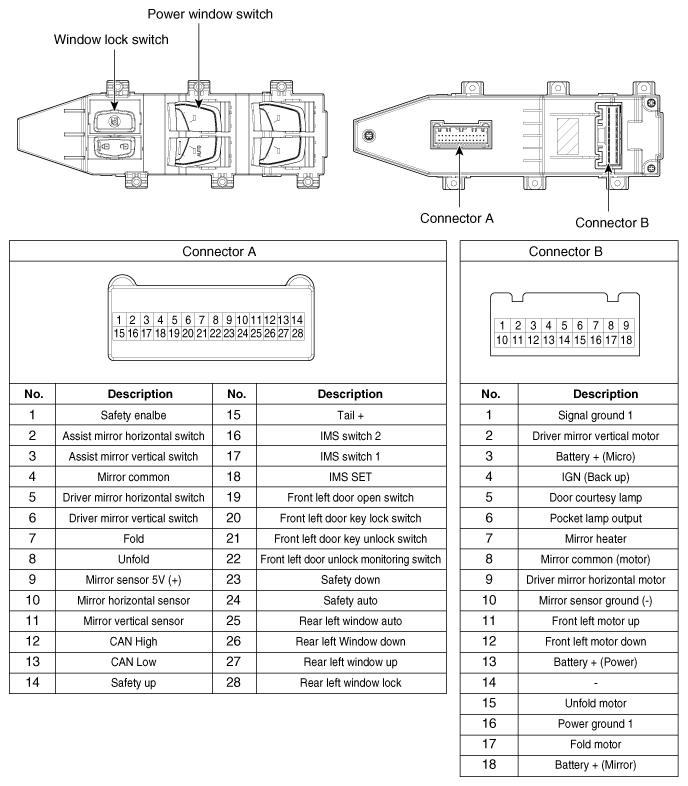

Fig 1: Driver Power Window Switch Connector Terminal Descriptions Chart
G12036186Courtesy of HYUNDAI MOTOR AMERICA
