Rear Power Window Switch

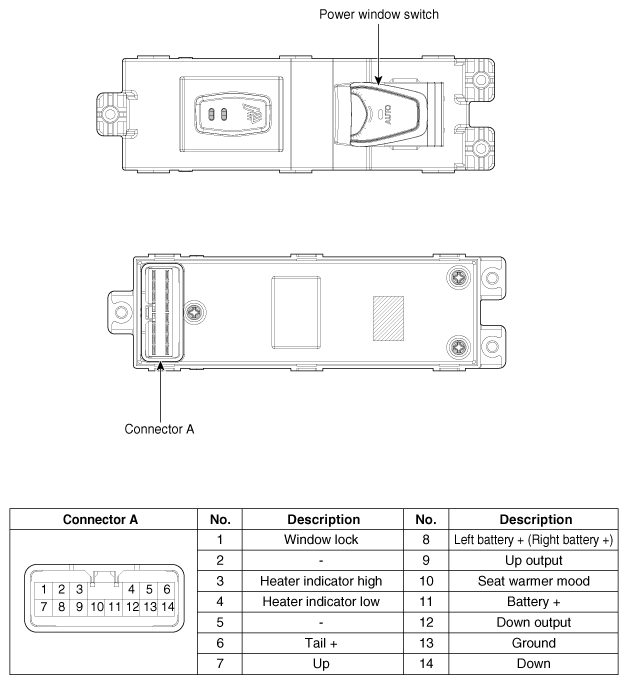

Fig 1: Rear Power Window Switch Connector Terminal Descriptions Chart
G12036188Courtesy of HYUNDAI MOTOR AMERICA
