Driver Power Window Switch

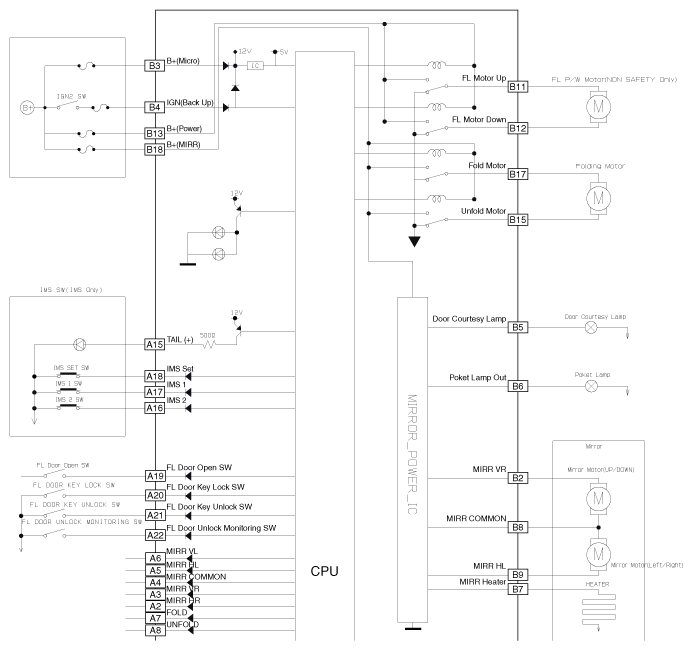

Fig 1: Driver Power Window Switch Diagram (1 Of 2)
G12036189Courtesy of HYUNDAI MOTOR AMERICA

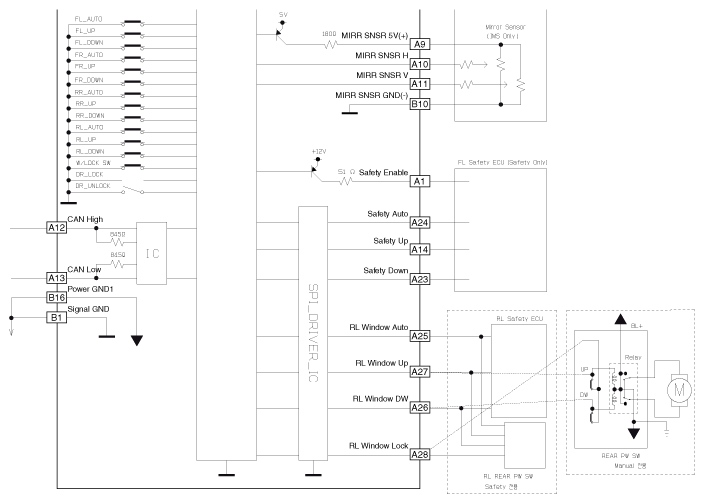

Fig 2: Driver Power Window Switch Diagram (2 Of 2)
G12036190Courtesy of HYUNDAI MOTOR AMERICA
