Charging System: Battery: Troubleshooting

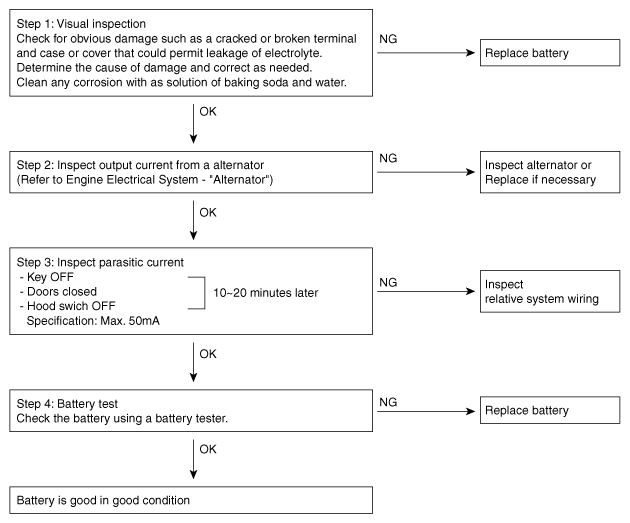

Fig 1: Battery Troubleshooting Chart
G12033814Courtesy of HYUNDAI MOTOR AMERICA
