Components And Components Location: Components

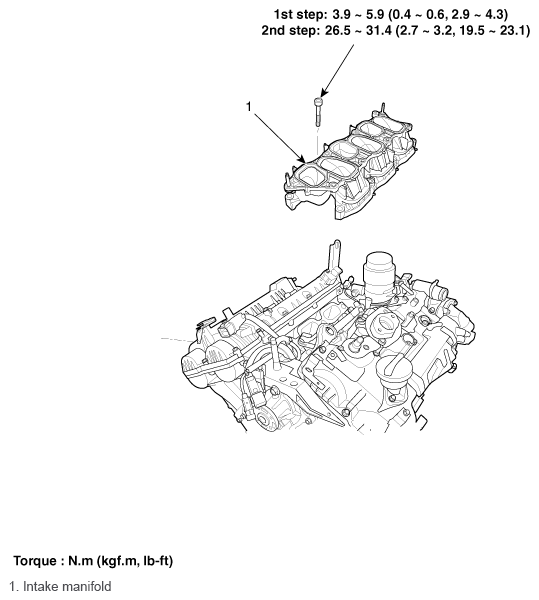

Fig 1: Intake Manifold Components With Torque Specifications
G12033751Courtesy of HYUNDAI MOTOR AMERICA
