Components And Components Location: Components

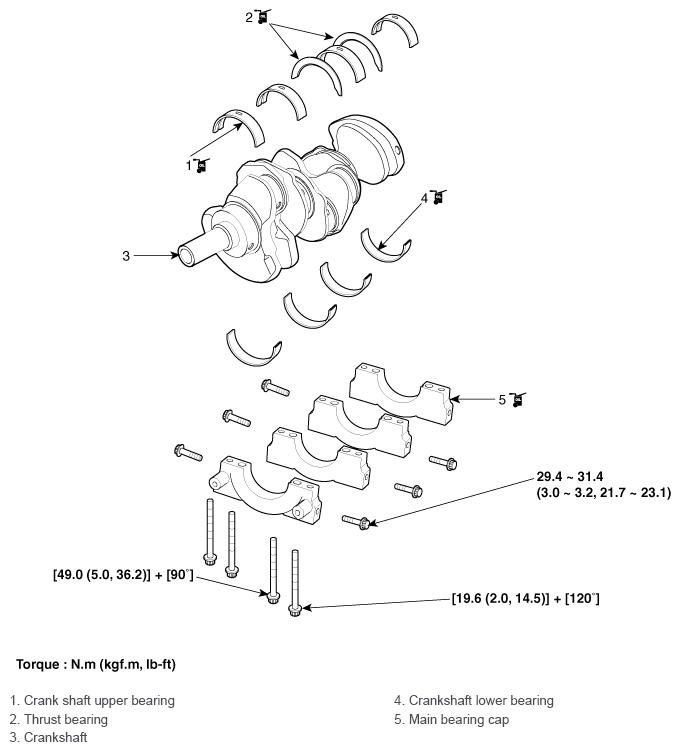

Fig 1: Crankshaft Components With Torque Specifications
G12033628Courtesy of HYUNDAI MOTOR AMERICA
