Components And Components Location: Components

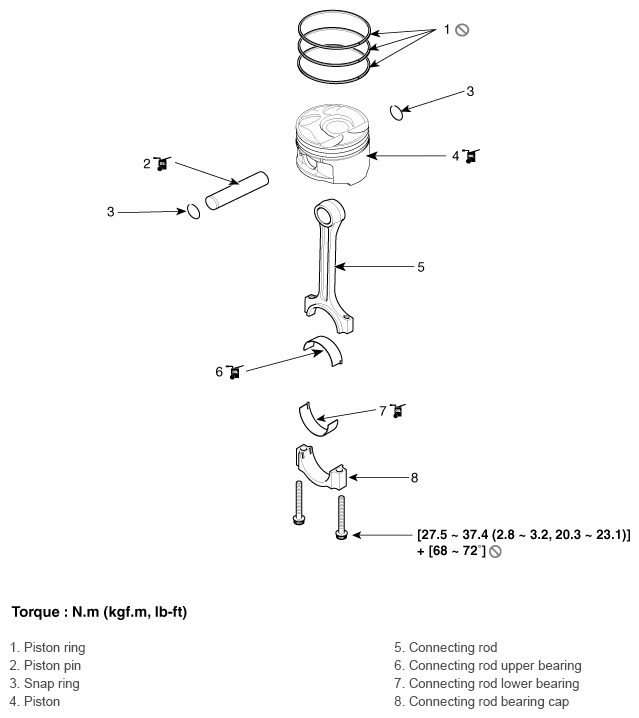

Fig 1: Piston And Connecting Rod Components With Torque Specifications
G12033607Courtesy of HYUNDAI MOTOR AMERICA
