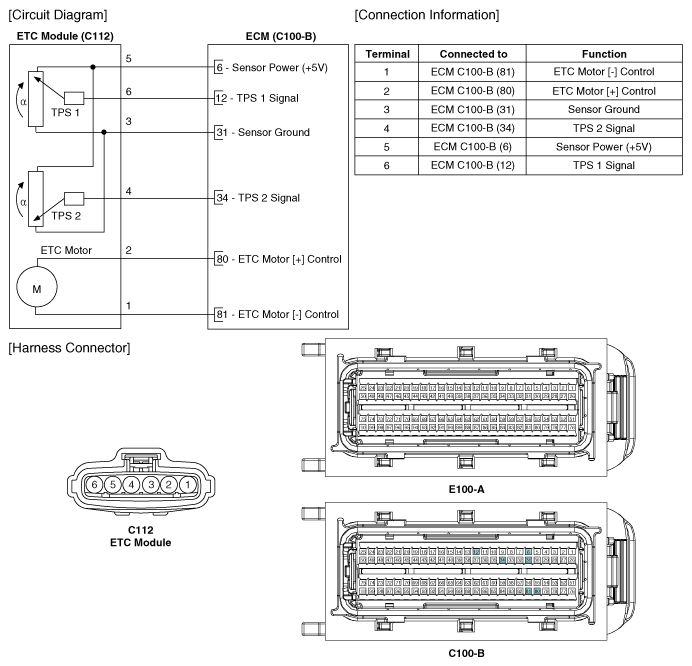

Home › Hyundai › 2017 › Santa Fe XL Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › ETC (Electronic Throttle Control) System › Schematic Diagrams › Circuit Diagram
