Signal Waveform

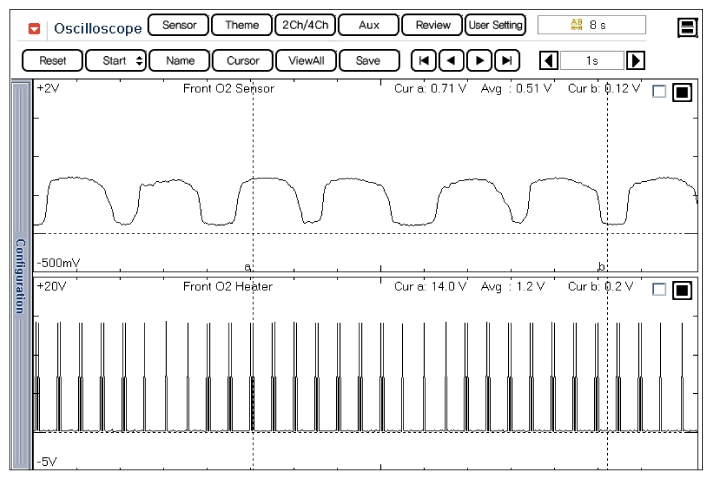

Fig 1: Scantool Display - Signal Waveform Of Heated Oxygen Sensor (1 Of 2)
G12034022Courtesy of HYUNDAI MOTOR AMERICA

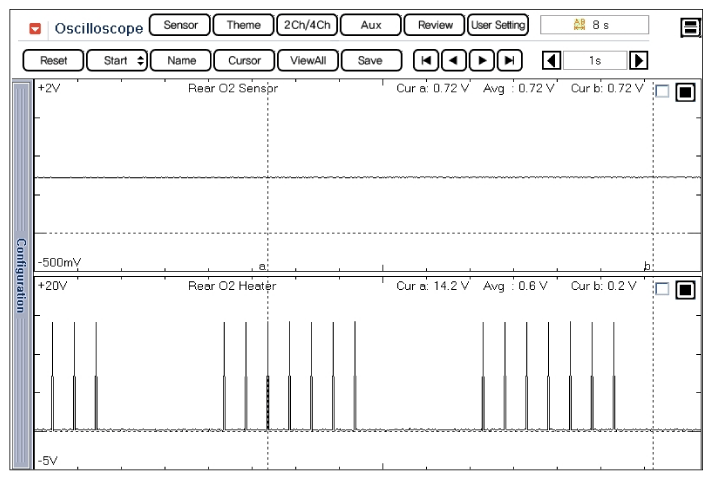

Fig 2: Scantool Display - Signal Waveform Of Heated Oxygen Sensor (2 Of 2)
G12034023Courtesy of HYUNDAI MOTOR AMERICA
