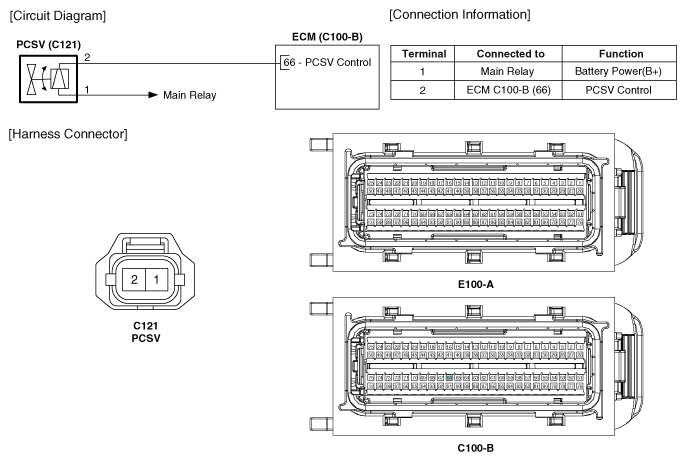

Home › Hyundai › 2017 › Santa Fe XL Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Purge Control Solenoid Valve (PCSV) › Schematic Diagrams › Circuit Diagram
