Signal Waveform & Data

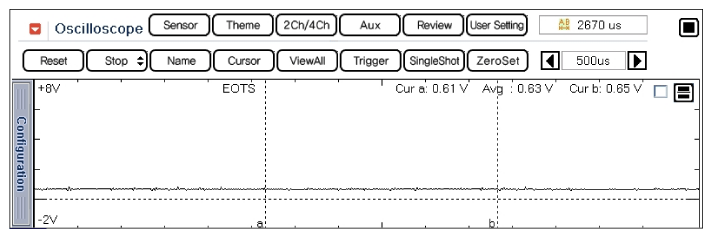

Fig 1: Normal Waveform Of EOTS At 76°C (168.4°F)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Normal Data Of IATS, ECTS & EOTS At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Normal Data Of IATS, ECTS & EOTS Engine At Operating Temperature

Courtesy of HYUNDAI MOTOR AMERICA
