Engine Control System Diagnosis (3 Of 3)
›
DTC P0620: Alternator Control Circuit
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

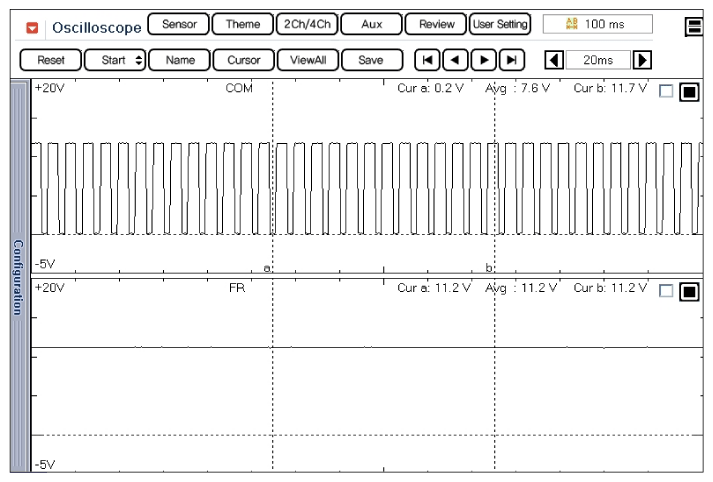

Fig 1: Normal Waveforms Of COM & FR Terminal Of Alternator At Idle
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Normal Waveforms Of COM & FR Terminal Of Alternator With Connector Disconnected Condition At IG ON
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
