Home › Hyundai › 2017 › Santa Fe XL Base › Repair and Diagnosis › Restraints › Passive Restraints › Restraints - General Information › Components And Components Location › Components

Components And Components Location: Components

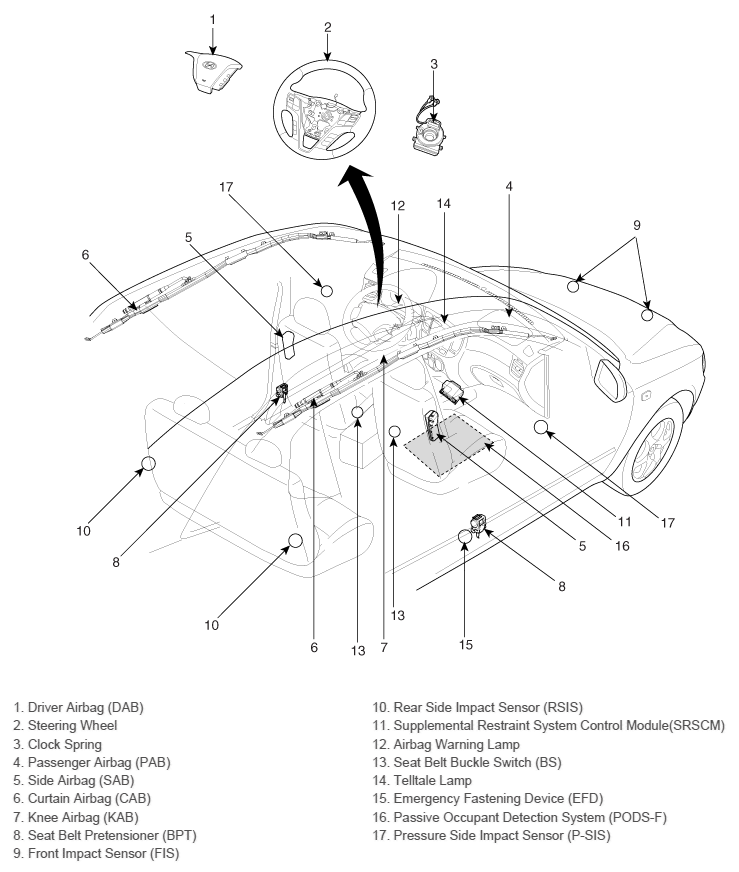

Fig 1: Restraint Components
G12033154Courtesy of HYUNDAI MOTOR AMERICA
