Home › Hyundai › 2017 › Santa Fe XL Base › Repair and Diagnosis › Suspension › Wheel Alignment › Rear Suspension System And Wheel Alignment › Rear Suspension System › Components And Components Location › Components › 2WD

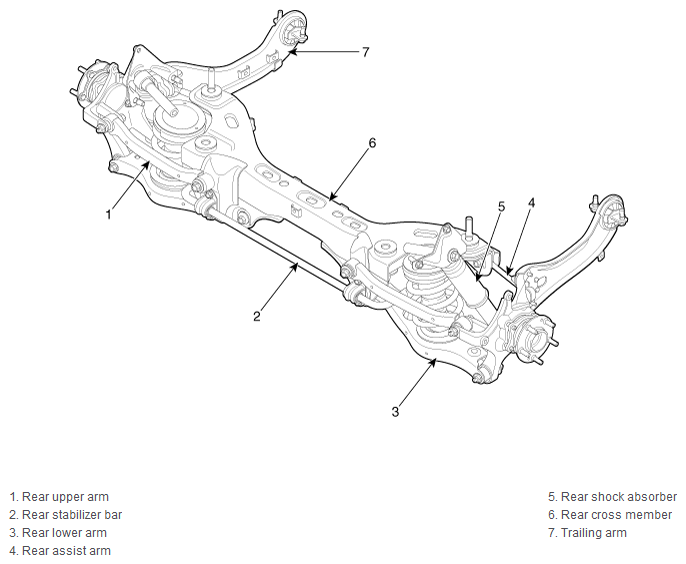

Components And Components Location: Components: 2WD

G12032935Courtesy of HYUNDAI MOTOR AMERICA
