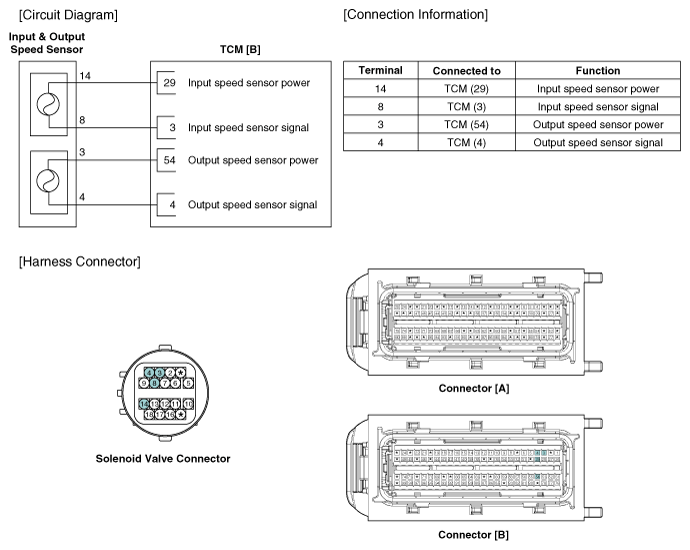

Home › Hyundai › 2017 › Santa Fe XL Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
