Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization Mode".

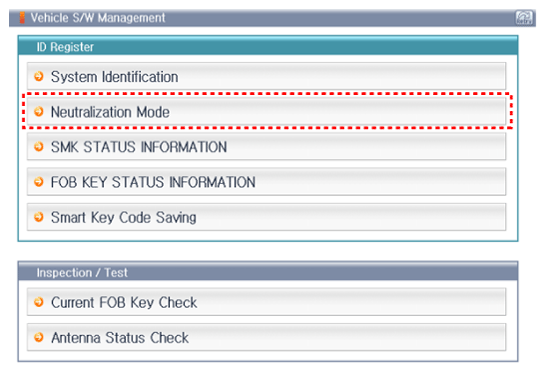

Fig 1: Screen Display - Neutralization Mode (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

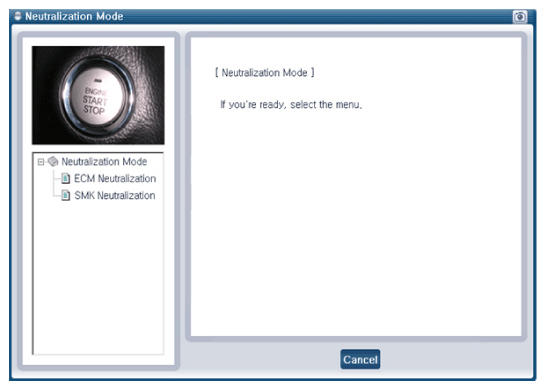

Fig 2: Screen Display - Neutralization Mode (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

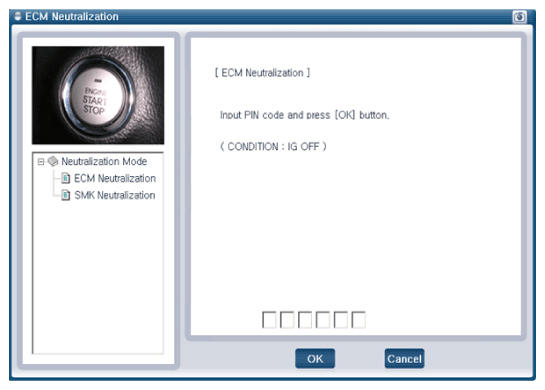

Fig 3: Screen Display - ECM Neutralization
Courtesy of HYUNDAI MOTOR AMERICA

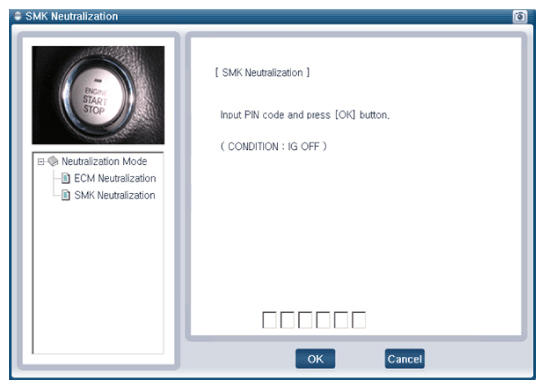

Fig 4: Screen Display - SMK Neutralization
Courtesy of HYUNDAI MOTOR AMERICA
