Power Window Switch
›
Components And Components Location
›
Rear Power Window Switch
Rear Power Window Switch

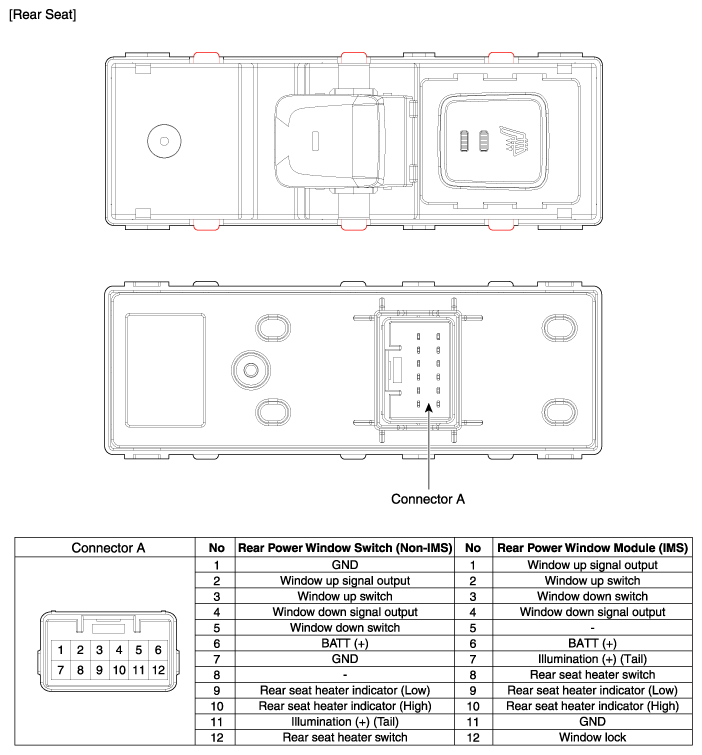

Fig 1: Rear Power Window Switch Connector Terminals And Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
