Home › Hyundai › 2017 › Sonata Base › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Program (Esp) System (Except HEV) › Front Wheel Speed Sensor › Components and Components Location › Components

Components and Components Location: Components

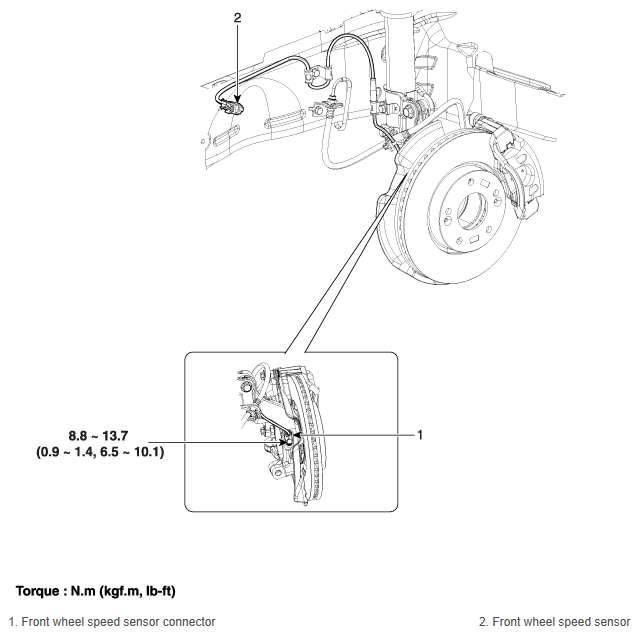

Fig 1: Front Wheel Speed Sensor Components With Torque Specification
G11987848Courtesy of HYUNDAI MOTOR AMERICA
