Home › Hyundai › 2017 › Sonata Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L (Except HEV) › E-CVVT Motor › Description And Operation › Operation

Description And Operation: Operation

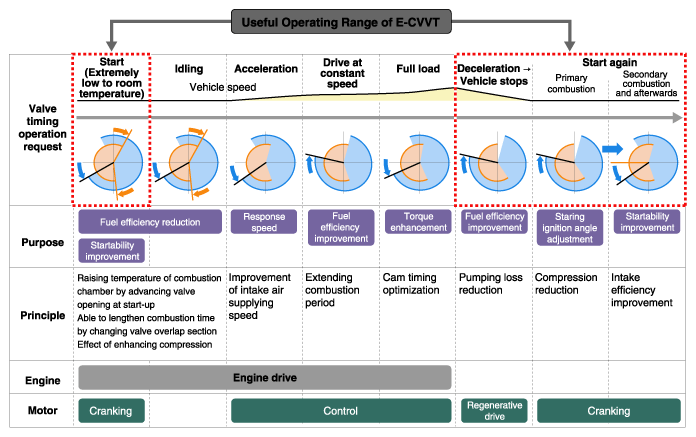

Fig 1: E-CVVT Motor Operation Chart
G11995534Courtesy of HYUNDAI MOTOR AMERICA
