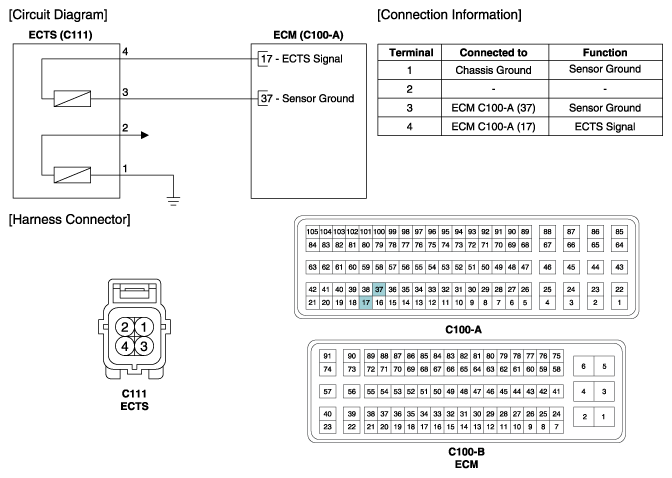

Home › Hyundai › 2017 › Sonata Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L (Except HEV) › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram
