Circuit Diagram

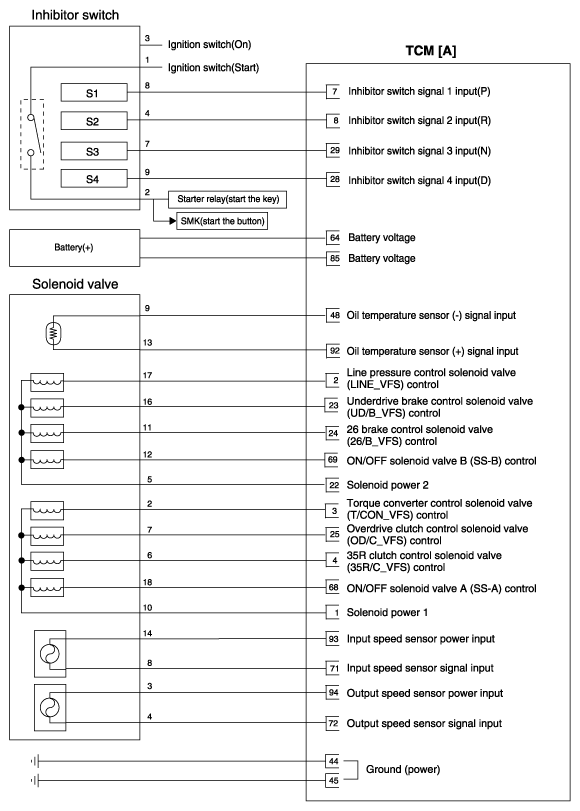

Fig 1: TCM Circuit (1 Of 2)
G11995708Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: TCM Circuit (2 Of 2)
G11995709Courtesy of HYUNDAI MOTOR AMERICA
