Components and Components Location: Components

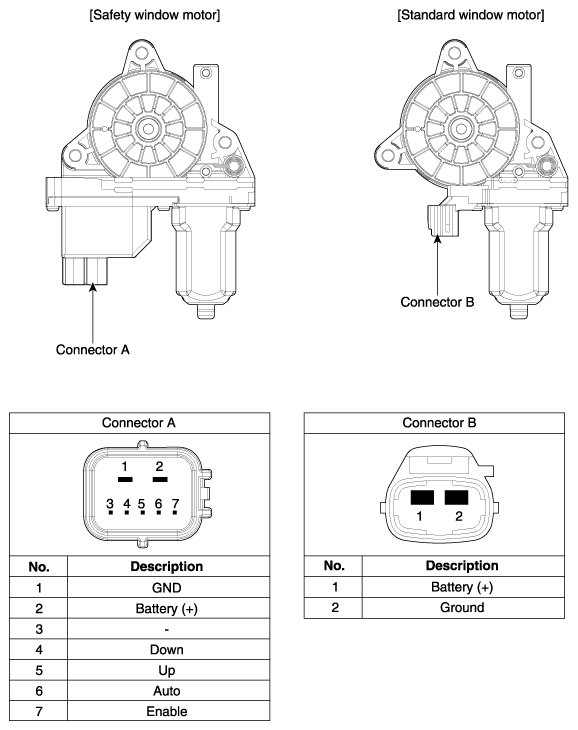

Fig 1: Power Window Motor Connector Terminals Identification
G11633097Courtesy of HYUNDAI MOTOR AMERICA
