Assist Power Window Switch

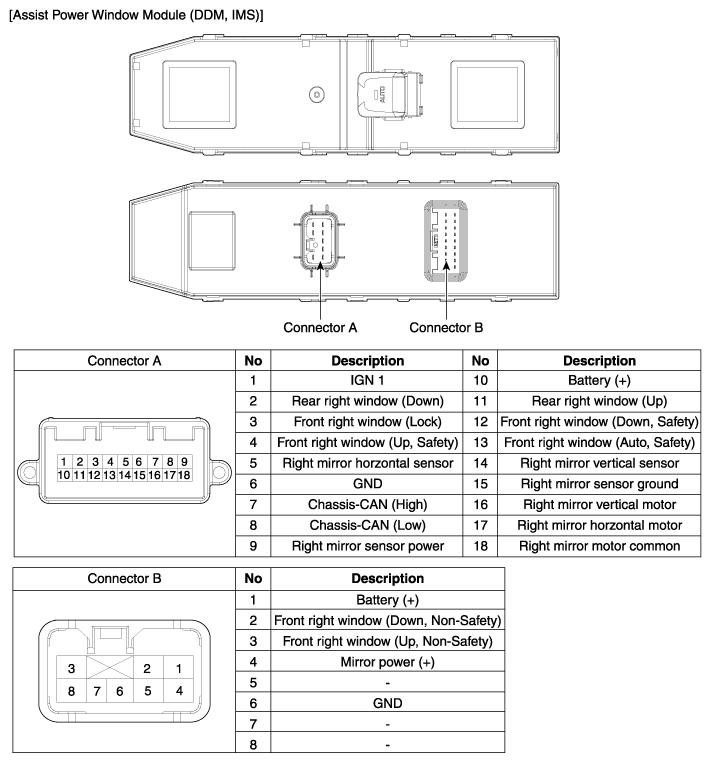

Fig 1: Assist Power Window Switch Connector Terminals Identification (1 Of 2)
G11633106Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Assist Power Window Switch Connector Terminals Identification (2 Of 2)
G11633107Courtesy of HYUNDAI MOTOR AMERICA
