Components and Components Location: Components

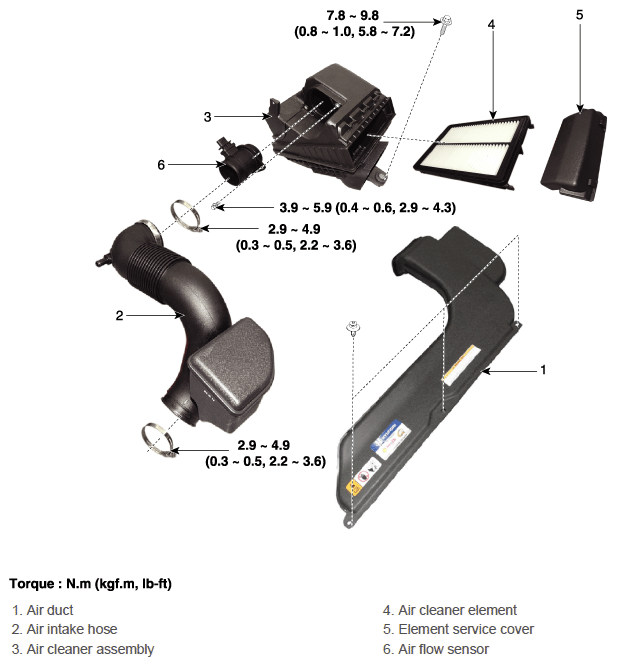

Fig 1: Air Cleaner Components With Torque Specification
G11630691Courtesy of HYUNDAI MOTOR AMERICA
