Components and Components Location: Components

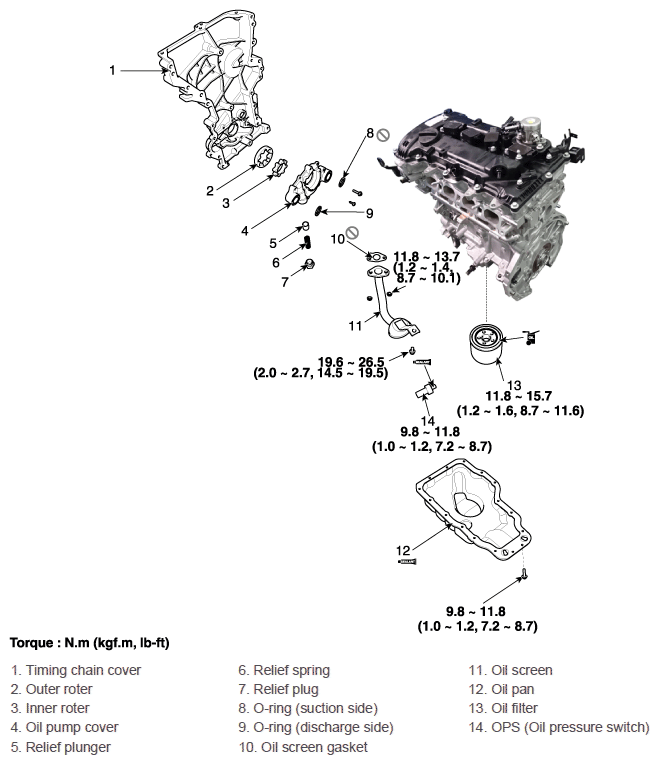

Fig 1: Exploded View Of Lubrication System With Torque Specification
G11630667Courtesy of HYUNDAI MOTOR AMERICA
