Components and Components Location: Components

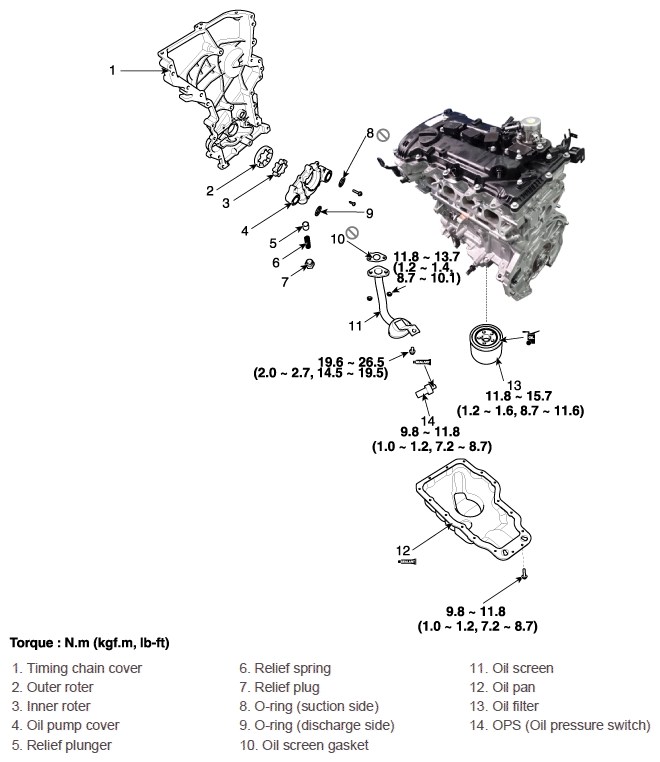

Fig 1: Exploded View Of Oil Pump With Torque Specification
G11630672Courtesy of HYUNDAI MOTOR AMERICA
