Hyundai
›
2017
›
Sonata Plug-In Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (PHEV)
›
Accelerator Position Sensor (APS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

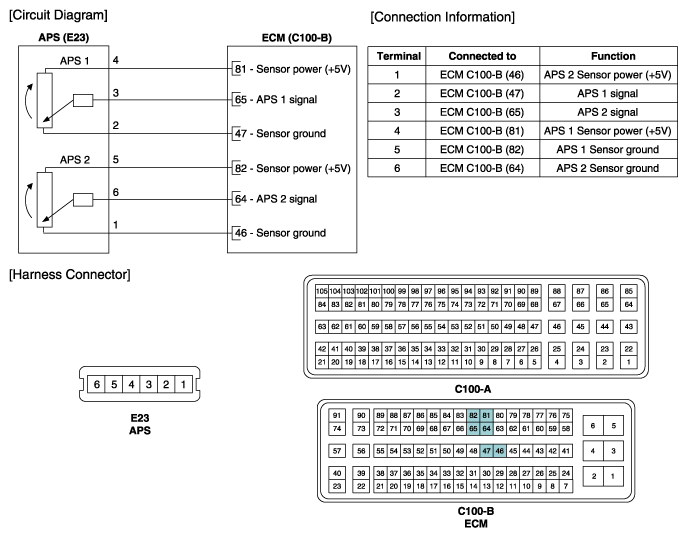

Fig 1: APS Schematic Diagrams and Connector End View
