Circuit Diagram

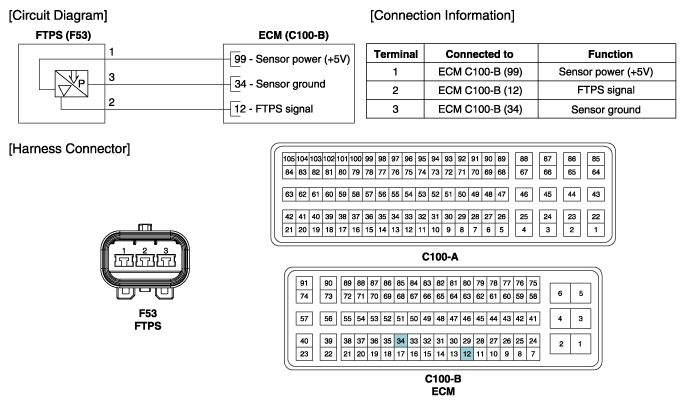

Fig 1: Fuel Tank Pressure Sensor Schematic Diagrams And Connector End View
G11631040Courtesy of HYUNDAI MOTOR AMERICA
